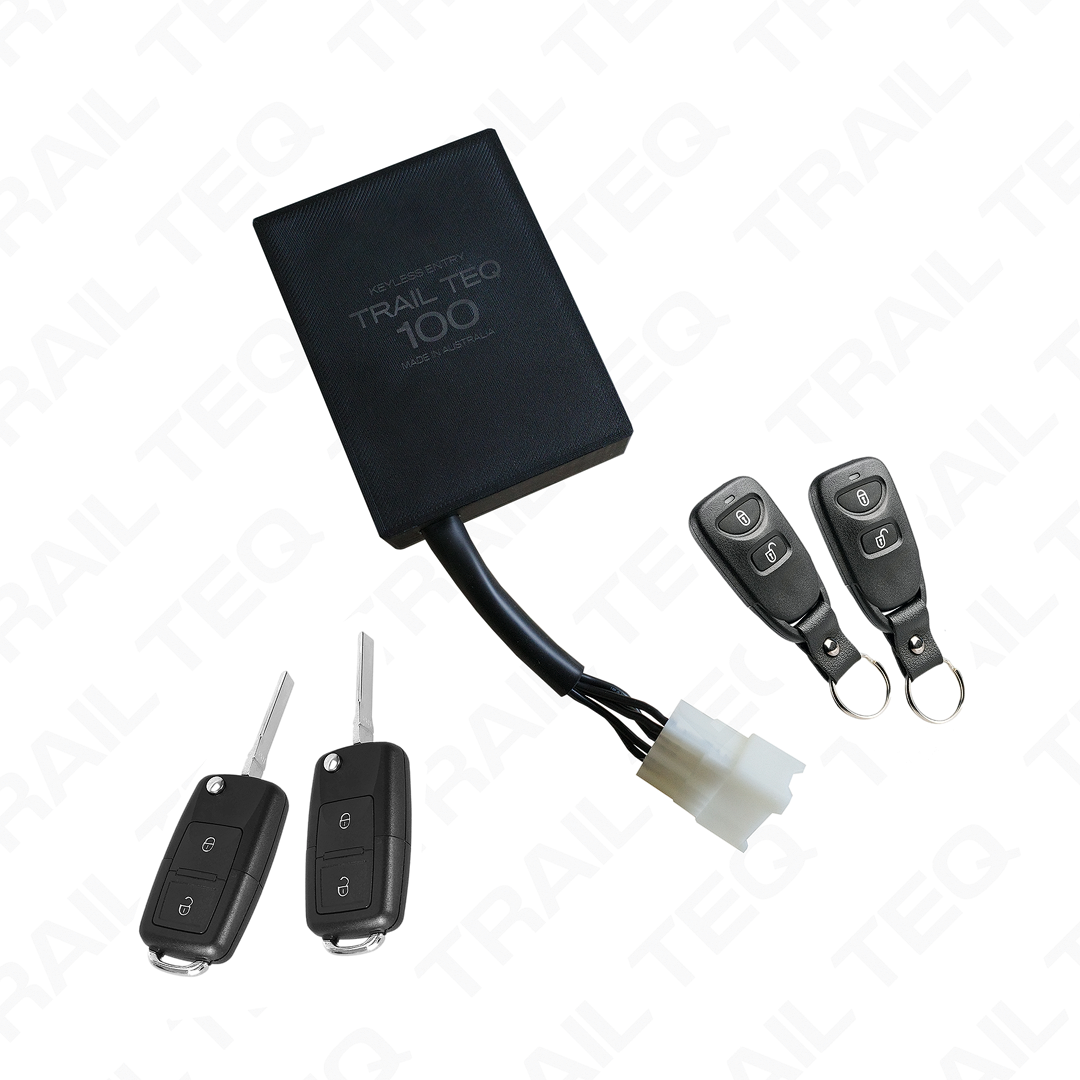

100 Series Landcruiser Plug-and-Play Keyless Remote Entry

This kit is designed to be a plug-and-play replacement for the original Australian market dealer fitted keyless entry modules which are prone to failure and suffers from a very poor remote range.

By using OEM connectors, our kit is super quick to install and offers a hassle free installation with absolutely no cutting, splicing or tampering with any of the original wiring harness.

This plug-and-play kit is also suitable for adding a keyless remote entry function to Australian Market 100/105 Series Land Cruisers that came with factory central locking, i.e. GXL or Sahara trims, even if you never had keyless entry fitted from the factory. Read the compatibility tab for fitment information.

There is the choice of regular remotes, or modern style flip key remotes. Read the flip key information tab below for compatibility.

• Installs in just 5 minutes - fully plug-and-play with OEM connectors.

• Very long remote range.
• No need to wire in additional relays.
• Your choice of regular remotes, or modern flip key remotes.
• Factory indicator flashing built in*
• No coding required.


* Indicator flashing will only work if your Land Cruiser has the wiring already in the loom for it. As this was a dealer fitted item, this varies from model to model. In our experience, most early model 100's have this, but some late models do not.

This kit is specifically designed to suit the RHD Australian delivered 100/105 series that came with factory central locking. It is suitable as a replacement for the original keyless modules, or, for adding keyless entry to your vehicle for the first time.

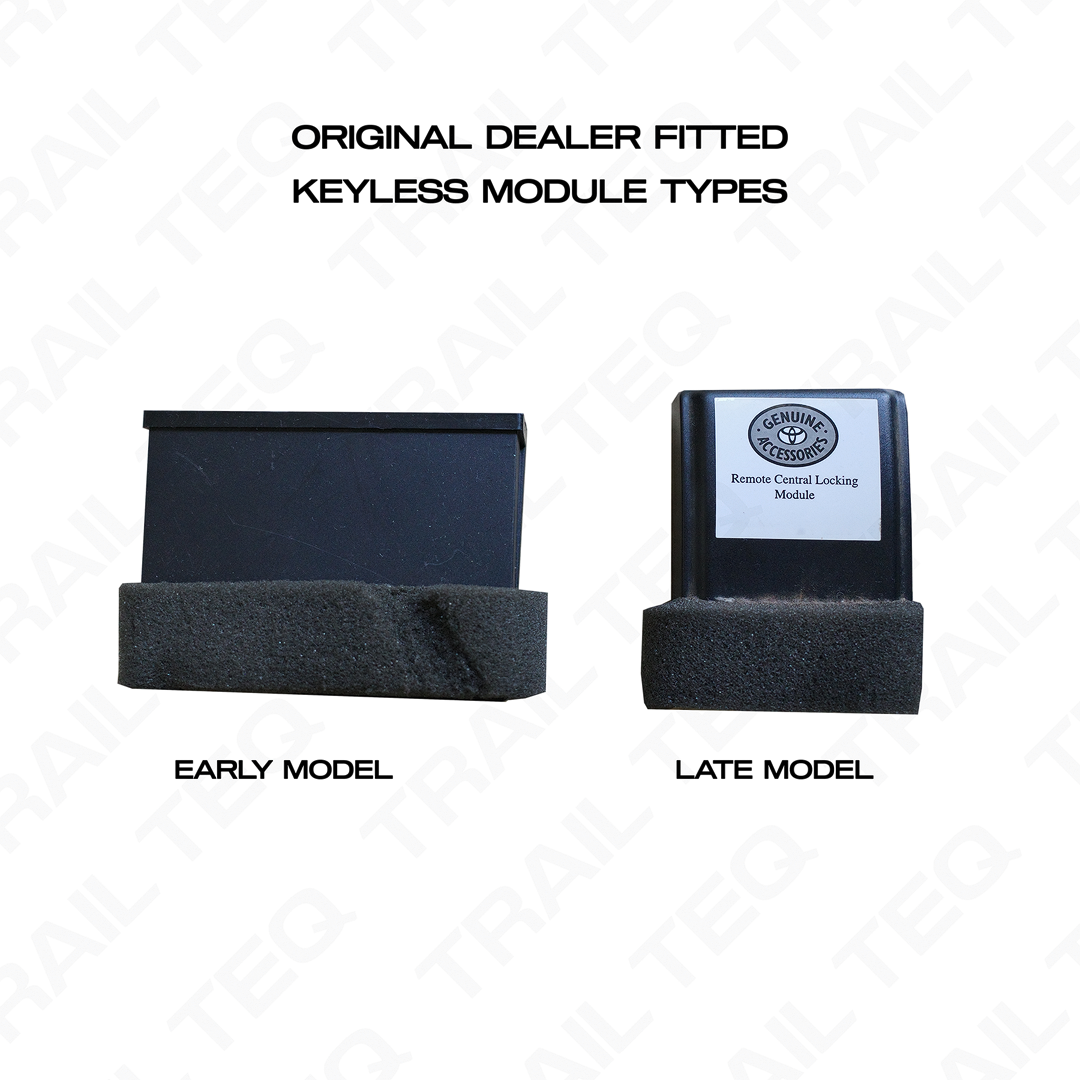

See the reference photos to identify your existing module type, as there are slightly different mounts on them. If you don't have an existing module - but have the connector in your wiring loom behind the glovebox, select the 'none' option.

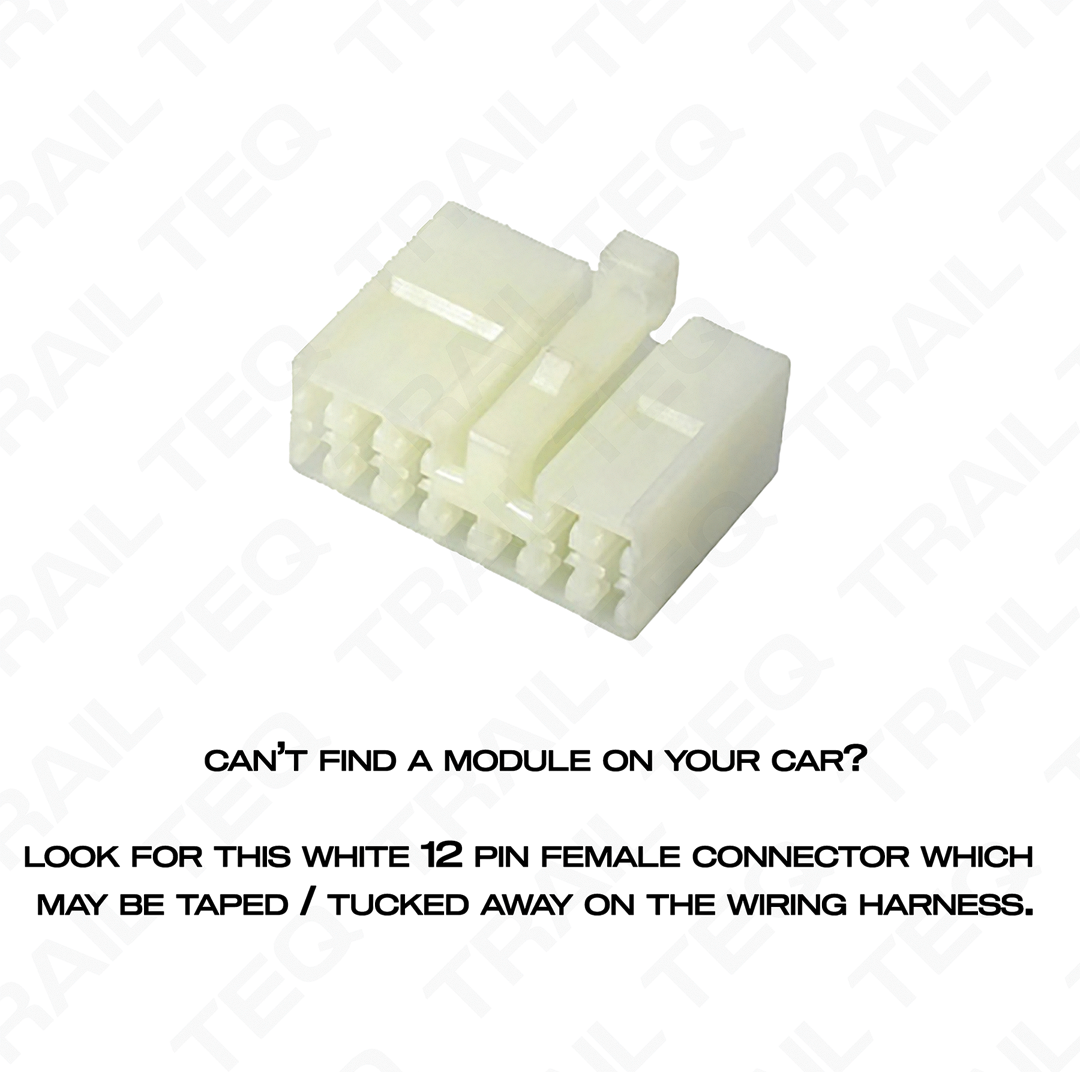

The original modules are located behind your glovebox. Remove the glovebox and the black trim piece behind it and they are located to the left. If no module is fitted, look for a spare white 12 pin connector that may be taped to the wiring harness.

This kit does not add central locking to cars that have no central locking.

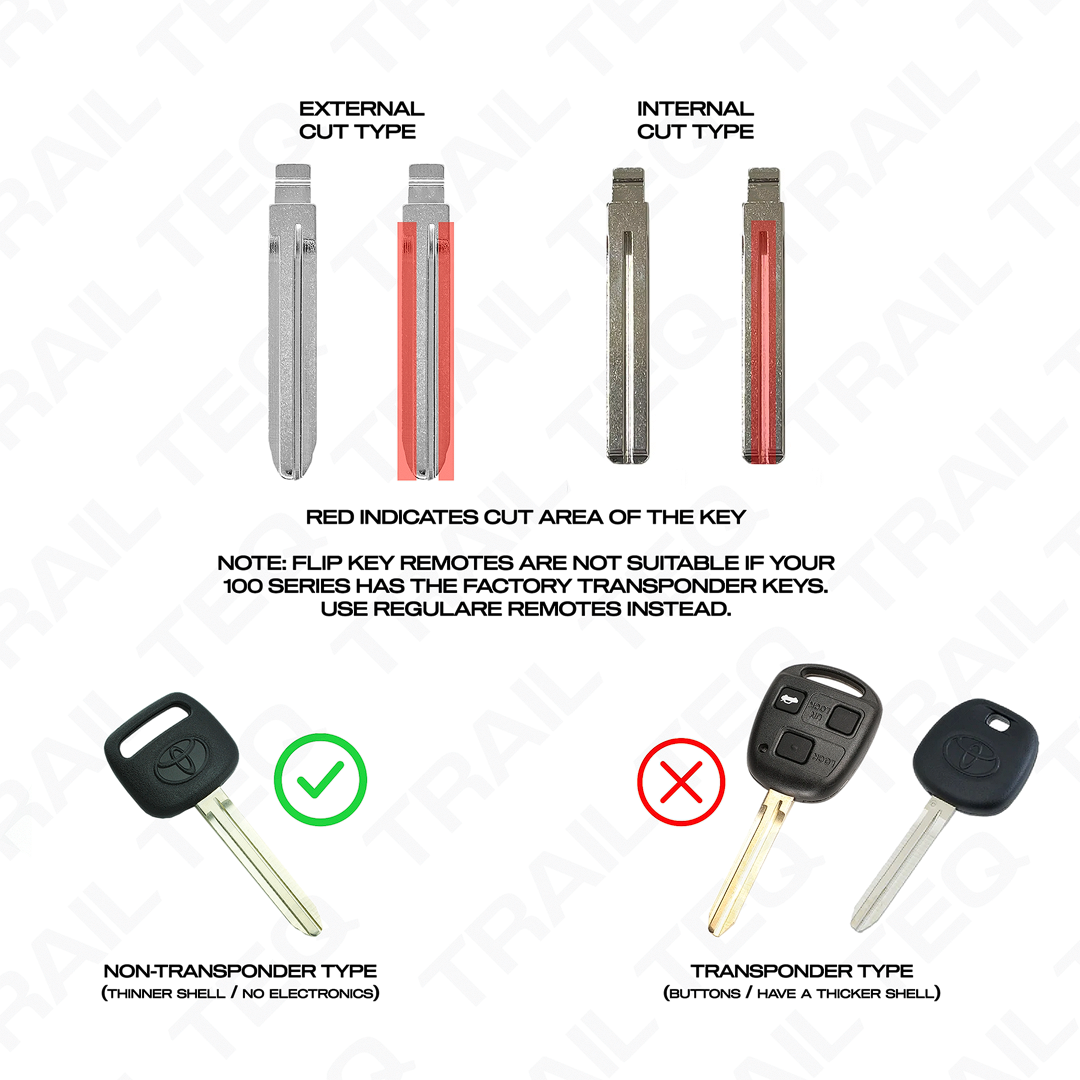

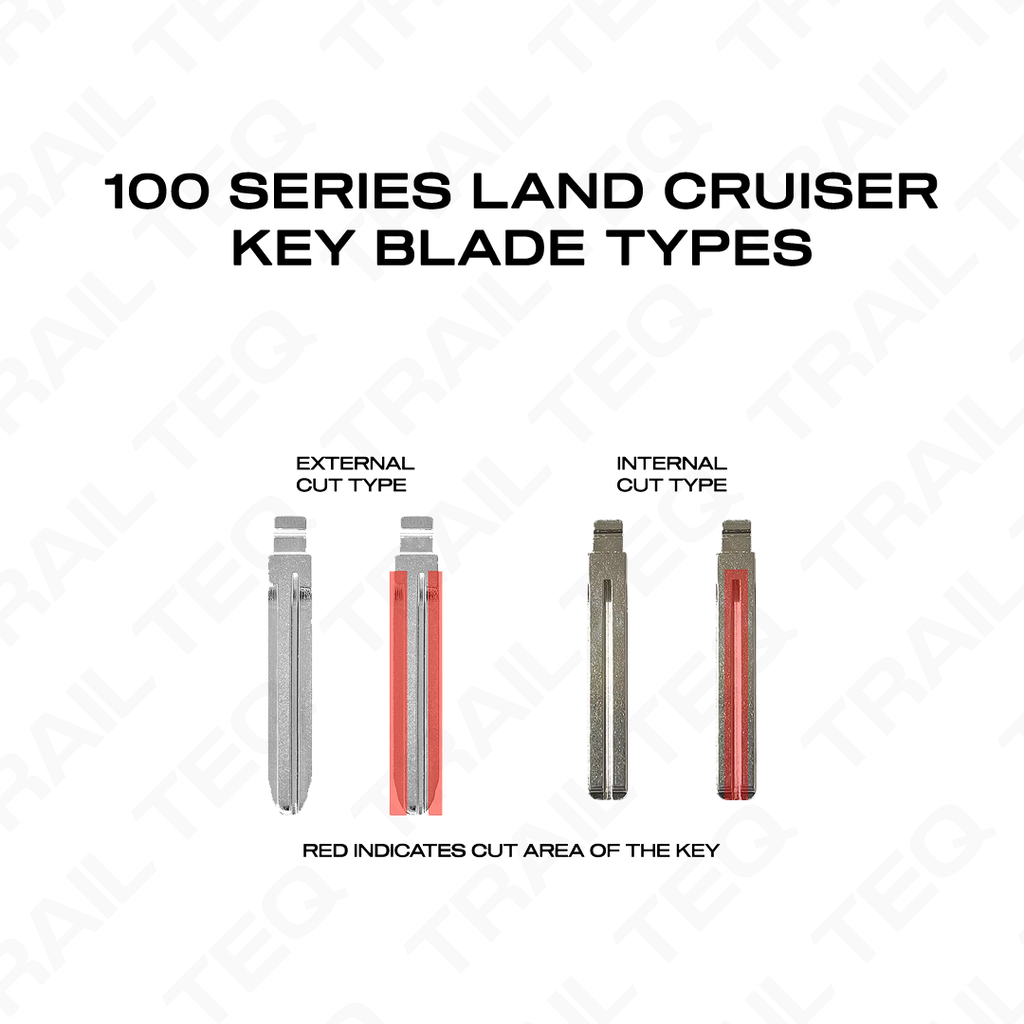

Flip key remotes are suitable for 100/105 Series without transponder keys. See the photos for a visual description, or send us a photo of your key if you are unsure.

If you have a transponder key version, you will need to use regular remotes, or you can buy the flip keys to use as regular remotes.

Instruction manual with detailed steps included.

Tools required: P2 Phillips screwdriver.

These kits are made to order and there is usually a small que of orders. Please allow approximately 5 days production time prior to postage.
